Interface

Getting started

The data to plot is first created in a Pandas dataFrame:

import pandas as pd
data = pd.DataFrame(
    [
        (“apple”, 100, “apple”, 50),
        (“banana”, 200, “banana”, 30),
        (“lime”, 50, “lime”, 20),
        (“blueberry”, 20, “blueberry”, 10),
        (“orange”, 150, “orange”, 150),
    ]
)

Note that there can be as many columns as you like and they are always presented in pairs of “label” then “weight”. (Unweighted diagrams – currently – would require you to simple put a weight of 1.0 for each label.)

A three column dataset might look like:

data3 = pd.DataFrame(
    [
        (“a”, 3, “ab”, 6, “a” , 3),
        (“a”, 3, “ba”, 2, “ba”, 1),
        (“c”, 5, “cd”, 3, “d” , 6),
        (“b”, 2, “ba”, 2, “ba”, 1),
        (“b”, 2, “ab”, 2, “a” , 3),
        (“d”, 6, “cd”, 1, “d” , 3),
        (“e”, 2, “e” , 3, “e” , 8),
    ]
)

Rather than manually typing out the dataFrame, you can also import it from a CSV file or similar:

import pandas as pd
data = pd.read_csv(‘pysankey/tests/fruit.csv’)

(You may need to be careful about whether the first row is considered to be data or column headers.)

Once you have the data, the diagram is plotted simply using the sankey function:

import ausankey as sky
sky.sankey(data)

which produces:

Colours

You can customise the colours either by changing the Matplotlib colormap:

sky.sankey(data,colormap=“jet”)

Or by manually choosing the colours:

color_dict = {
    ‘apple’:     ‘#f71b1b’,
    ‘blueberry’: ‘#1b7ef7’,
    ‘banana’:    ‘#f3f71b’,
    ‘lime’:      ‘#12e23f’,
    ‘orange’:    ‘#f78c1b’
}
sky.sankey(data,color_dict=color_dict)

You can combine both approaches to use a colour map for most of the nodes and then override only some of them manually. (I.e., the color_dict does not need to have entries for all of the labels.)

The opacity of the flows and nodes can be customised with flow_alpha and node_alpha respectively:

sky.sankey(data,flow_alpha=0.3)

Order of entries (sorting)

The order of the entries is top to bottom corresponding to first to last in the data frame.

The entries can be sorted highest to lowest:

sky.sankey(data,sort=“top”)

Or lowest to highest:

sky.sankey(data,sort=“bottom”)

Or left in the order listed in the data:

sky.sankey(data,sort=“none”)

The sort order of individual labels can be overidden using the sort_dict. E.g., sort_dict={“a”,0} would sort label a to the bottom of each stage regardless of its weighted node values.

Vertical Alignment

The vertical alignment of the diagram can be ”top”, ”bottom”, or ”center”:

sky.sankey(data,valign = “center”)

Labels

If the data is generated externally it may not be convenient to edit the label text in the source. The typeset labels can be specified using a dictionary of lookup strings:

label_dict = {
    ‘apple’:     ‘Apple’,
    ‘blueberry’: “B’berry”,
    ‘banana’:    ‘Banana’,
    ‘lime’:      ‘Lime’,
    ‘orange’:    ‘Orange’
}
sky.sankey(data,label_dict=label_dict)

Note that the dictionary does not need to contain an entry for each label.

The locations of the labels can be specified according to whether they correspond to the nodes in the first, middle, or right of the diagram:

label_loc = [ <loc_l> , <loc_m>, <loc_r> ]

Allowable values for <loc_l> and <loc_r> are ”left”, ”right”, ”center”, ”top”, or ”none”. <loc_m> also allows ”both”. The default settings are:

label_loc = [ “left”, “none”, “right” ]

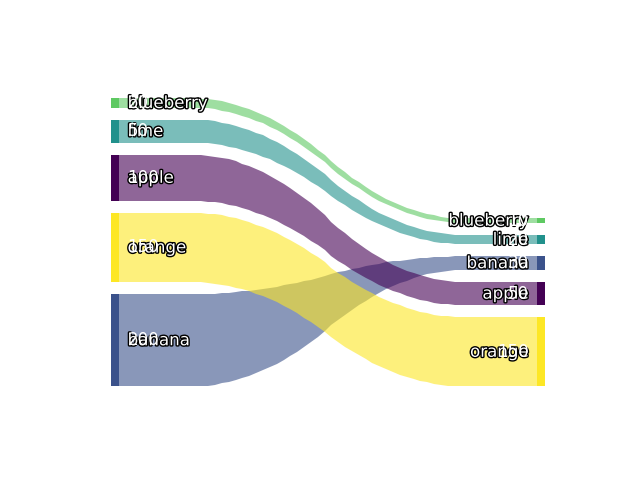

When adjusting the position of the labels, some care can be needed to avoid clashing with the printing of the values. In these examples we just turn the values off.

sky.sankey(
    data3,
    label_loc=[“right”,”right”,”left”],
    value_loc=[“none”,”none”,”none”],
)

Repeating the labels can be redundant in cases where labels are repeated/duplicated in successive stages. Label duplication can be turned off, which only prints a label if it didn’t appear in the previous stage.

sky.sankey(
    data3,
    label_loc=[“right”,”right”,”left”],
    value_loc=[“none”,”none”,”none”],
    label_duplicate=False,
)

Sometimes you only need to label once. If the values fluctuate significantly one approach to successfully labelling can be to only label the largest valued node across all stages:

sky.sankey(
    data,
    label_largest = True,
)

The position of the label will still be inferred from the label_loc setting.

By default the node label only includes the textual string. To include the numerical value as well, set label_values to true:

sky.sankey(
    data,
    node_gap = 0.2,
    label_values = True,
    value_format = "0.1f"
)

Although not shown here, for more complex plots some heuristics are used to avoid printing redundant flow values (see next section).

Values

The numerical values for each (sub)flow are annotated by default. (It’s slightly confusing that labels refer to nodes whereas values refer to flows.) These can be customised or turned off.

The locations of the values can be specified according to whether they correspond to the flows in the first, middle, or right of the diagram:

value_loc = [ <loc_l> , <loc_m>, <loc_r> ]

Allowable values for <loc_l> and <loc_r> are ”left”, ”right”, ”both”, or ”none”. The default settings are:

value_loc = [ “both”, “right”, “right” ]

These defaults are intended to a avoid clashes with the default label_loc settings.

When "both" is used, a flow which doesn't change size will display repeated values. This behaviour can be controlled with value_duplicate:

sky.sankey(
    data,
    value_loc = ["both","both","both"],
    value_duplicate = False,
)

Titles

Titles for each column of data can be added:

sky.sankey(data,titles=[“Summer”,”Winter”])

Titles can be placed ”top”, ”bottom”, or ”both”:

sky.sankey(data,
    titles = [“Summer”,”Winter”],
    title_side = “bottom”,
)

Titles can also be placed “outside” the plot area, with default spacing intending to be placed outside the frame:

sky.sankey(data,
    titles = [“Summer”,”Winter”],
    frame_side = “both”,
    title_loc = “outer”,
)

Fonts

The font family, font colour, and font size can be set globally:

sky.sankey(data,
    titles=[“Summer”, “Winter”],
    fontsize=15,
    fontfamily=“serif”,
    fontcolor=“red”,
)

These options do not use snake_case for consistency with their underlying Matplotlib options. Further font options can be passed through directly via the label_font, title_font, and value_font options, which override the settings above.

For example:

sky.sankey(
  data3,
  titles    = [“Stage 0”,”Stage 1”,”Stage 2”],
  title_font = {
      “color”: “red”,
      “fontsize”: 14,
      “fontweight”: “bold”,
  },
  label_font = {“color”: “blue”},
  value_font = {“color”: “green”},
)

Refer to Matplotlib documentation for available options.

Frames

Horizontal framing can be placed ”top”, ”bottom”, or ”both”:

sky.sankey(data,frame_side = “both”)

The frame can be coloured:

sky.sankey(data,
    frame_side=“both”,
    frame_color=“#62dcbe”,
 )

Edges

Lines around the edges of the nodes and/or flows, and their linewidths (lw) can be specified as follows.

sky.sankey(data3,
    node_edge = True,
    flow_edge = True,
    node_lw = 2,
    flow_lw = 1,
    # just for better visuals in this case:
    node_width = 0.1,
    node_alpha = 0.6,
    flow_alpha = 0.3,
    )

Spacing

A number of parameters can be set to customise the spacing and layout of the diagram. These parameters are normalised against the diagram height or width according to which direction they are oriented.

sky.sankey( data,
            titles = [“Summer”,”Winter”],
            title_side  = “both”,
            frame_side  = “both”,
            sort        = “top”,
            valign      = “center”,
            # spacing parameters:
            node_gap     = 0.01 ,
            node_width   = 0.1 ,
            frame_gap   = 0.2 ,
            label_width = 0.3 ,
            label_gap   = 0.02,
            value_gap   = 0.03,
            title_gap   = 0.1 ,
          )
